Arduino UNO Q

Run Moorcheh Edge on the Arduino UNO Q Debian side. Docker pulls the ARM64 image automatically. Install the CLI and Python SDK in a virtual environment to avoid Debian PEP 668 warnings and keep python3 imports working.

Text store: The Python client embeds text locally with BAAI/bge-small-en-v1.5 (384 dimensions). For vector-only workflows, generate embeddings upstream and use upload-vectors.

What you need

Requirement	Notes
Arduino UNO Q	Linux (MPU) partition with Docker
Network	Local network or Wi‑Fi during board onboarding
Arduino App Lab / onboarding	To connect to the board shell (no fixed IP in this guide)

The published image moorcheh/moorcheh-edge:latest includes linux/arm64 and linux/amd64. On UNO Q, moorcheh-edge up pulls the correct architecture for you.

Step 1 - Connect to the board

During onboarding, connect the UNO Q to your local network, Wi‑Fi, or internet as prompted. Then in Arduino App Lab:

Connect your Arduino UNO Q (USB icon in the bottom status bar).
Select moorcheh-edge for that board if it is not already active.
Click the terminal icon (>_) in the status bar to open the board shell.

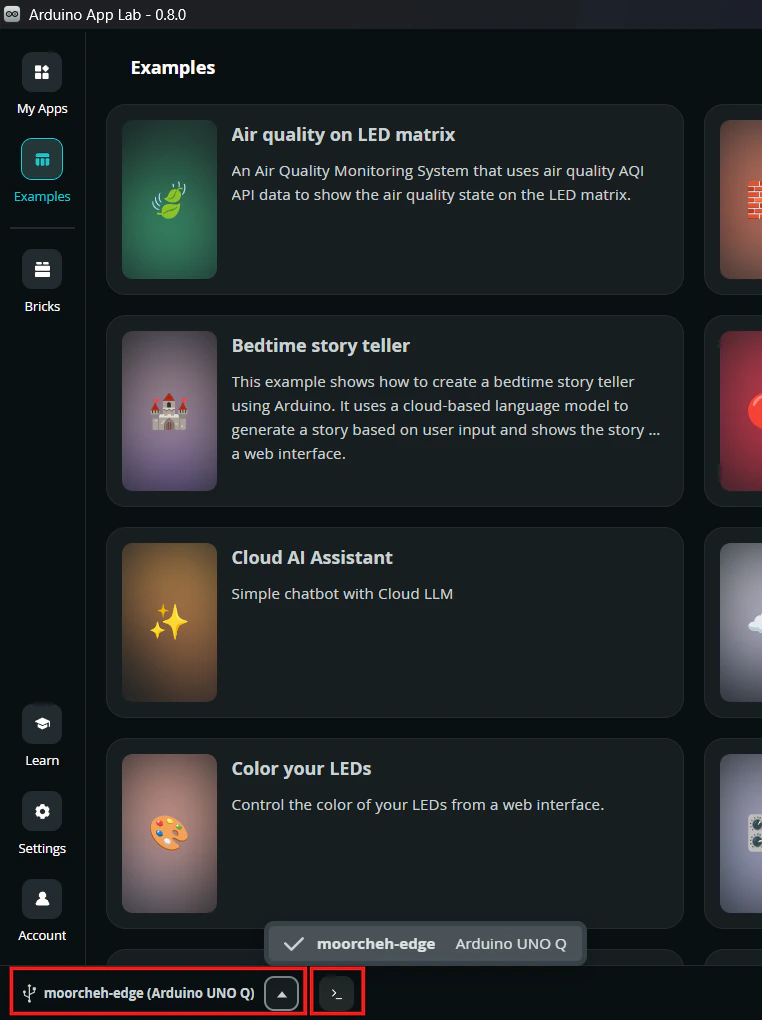

Arduino App Lab with moorcheh-edge on Arduino UNO Q — In Arduino App Lab, select moorcheh-edge on your UNO Q and open the terminal from the status bar.

You should land in a shell as user arduino on the board.

Step 2 - Create a virtual environment and install

Debian on UNO Q is externally managed (PEP 668). Use a venv so both the CLI and Python SDK live in one place:

sudo apt-get update && sudo apt-get install -y python3-venv
python3 -m venv ~/moorcheh-venv
source ~/moorcheh-venv/bin/activate
pip install moorcheh-edge

After activate, your prompt may show (moorcheh-venv). The moorcheh-edge CLI and moorcheh_edge Python package are available in this shell.

Each time you open a new board shell, activate the venv again before running commands:

source ~/moorcheh-venv/bin/activate

When you are finished in that shell session, deactivate the venv:

deactivate

Your prompt returns to normal (no (moorcheh-venv) prefix). Deactivating does not stop the Moorcheh Edge server - the Docker container keeps running until you run moorcheh-edge down.

Step 3 - Start the server

moorcheh-edge up

The CLI pulls moorcheh/moorcheh-edge:latest (if needed), starts the Docker container, and creates ~/.moorcheh-edge/data. To pin the 0.2.3 release (BGE-small 384-dim + Qwen LLM):

moorcheh-edge up --server-image moorcheh/moorcheh-edge:0.2.3 --with-llm -y

0.2.3 changes text-store dimension from 768 to 384. After upgrading from an older image, run moorcheh-edge clear-store -y, remove ~/.moorcheh-edge/models, and re-upload documents.

Verify the API:

moorcheh-edge status

Expect "status": "ok". First up with --with-llm on Linux installs Ollama and pulls qwen2.5:0.5b-instruct (~400 MB) for answer. Default up is search-only; use moorcheh-edge up --skip-ollama to skip LLM explicitly.

Step 4 - Run a smoke test

Create ~/moorcheh-edge-test.py:

nano ~/moorcheh-edge-test.py

Paste:

#!/usr/bin/env python3
"""Smoke test: health → upload → search → delete → clear."""

from moorcheh_edge import MoorchehEdge

with MoorchehEdge(port=8080, skip_pull=True) as edge:
    print("1) Health:", edge.health())
    edge.clear_store()
    print("2) Upload:", edge.upload_documents([
        {"id": "doc-1", "text": "Hello from Arduino UNO Q"},
    ]))
    print("3) Search:", edge.search_text("Hello from Arduino", top_k=3))
    edge.clear_store()
    print("4) Health:", edge.health())
    print("\nDone.")

Run it (with the venv activated):

python3 ~/moorcheh-edge-test.py

The same pattern lives in the repo at moorcheh-edge-client/examples/moorcheh-edge-test.py (vector store variant).

Step 5 - Answer (RAG)

After uploading documents (see Quickstart):

moorcheh-edge answer --query "Who won the football match?" --top-k 5 --kiosk-mode --threshold 0.8

Uses Ollama with qwen2.5:0.5b-instruct. First answer may take a minute on UNO Q while the model loads. If no catalog chunks match, the server returns I don’t have enough information to answer that question. without calling the LLM.

External embeddings (vector store)

For precomputed vectors, produce embeddings upstream, then upload via CLI or SDK. See Limits for allowed dimensions.

Topic	Where to read
Store modes and dimensions	Limits
Upload API	POST /upload
Search API	POST /search
Answer API (RAG)	POST /answer - LLM `qwen2.5:0.5b-instruct`
Python SDK	Python client

Troubleshooting

Upload fails: `failed writing temp file ... moorcheh_edge_store.tmp`

The container runs as a non-root user. Ensure the data directory is writable:

moorcheh-edge down
chmod 777 ~/.moorcheh-edge/data
moorcheh-edge up

`ModuleNotFoundError: No module named 'moorcheh_edge'`

Activate the venv first:

source ~/moorcheh-venv/bin/activate
python3 ~/moorcheh-edge-test.py

`moorcheh-edge: command not found`

Activate the venv:

source ~/moorcheh-venv/bin/activate

`exec format error` in container logs

Pull the latest multi-arch image (see Changelog), then:

moorcheh-edge down
moorcheh-edge up

Next steps

Quickstart - upload and search from the CLI
CLI reference
Limits - store cap and dimension rules
